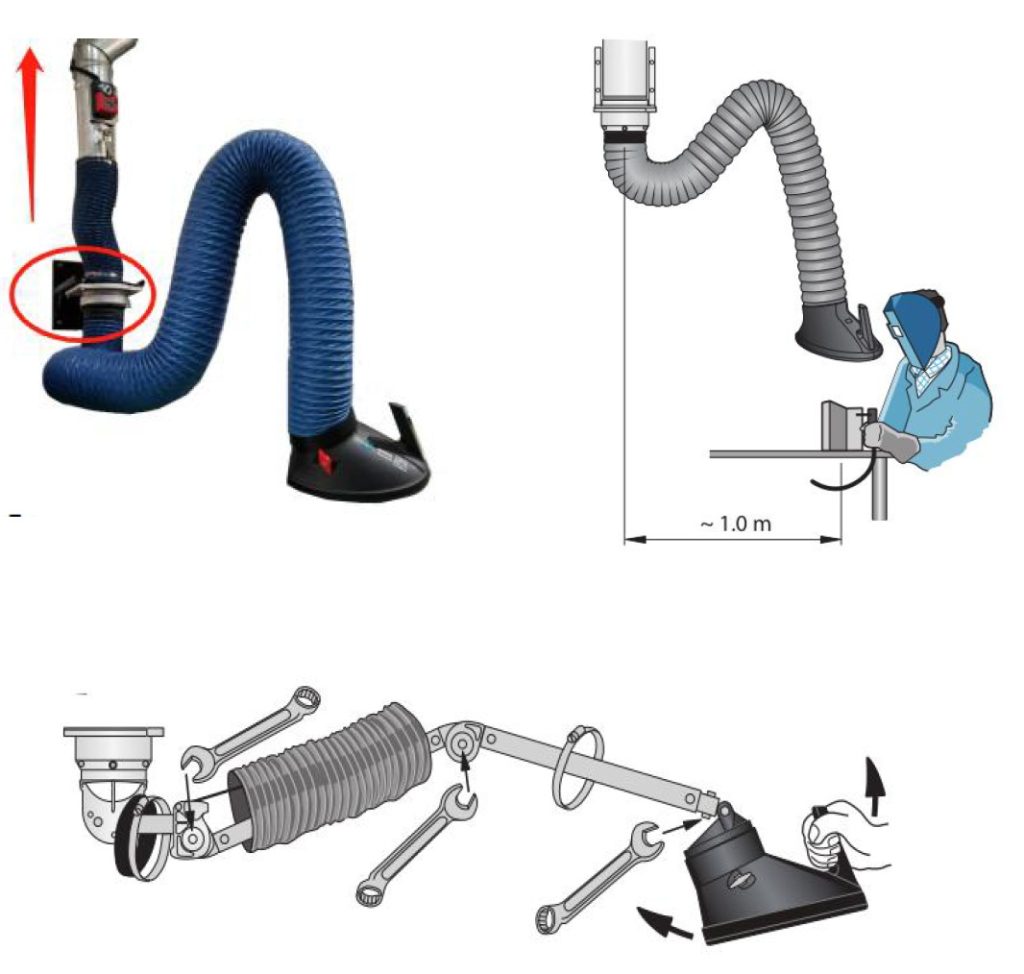

Fume Extraction Arm, or also called a dust extraction arm, it is basically a flexible, movable suction arm that you can position close to the dust/fume source to capture contaminants directly at the point where they’re generated. It is a mechanical arm that connectec to a duct + dust collector with a hood / nozzle at the end that sucks dust, smoke, or fumes.
Key Features:
> Flexible joints (you can move it anywhere)
> Holds its position once placed
> Localized suction (very close to source)
Suitable for capturing: Welding fumes, Grinding dust, Soldering dust, Cutting, Polishing, Laboratory uses.
- Multi-joints flexible arms. Horizontal part with rotating joint structure, which make the horizontal flexibility and increase the effective active angle.
- The built-in support and link structure is made of aluminum alloy materials, of light weight, which make the arm more flexibly, all the links between joints designed in a fluid way and the corner is treated in a smooth transition in order to reduce the wind resistance
- Link flexible suction arm intermediate by friction plate made of composite materials of 80mm, increase the friction in the contact area and prolong the service life of the friction plate

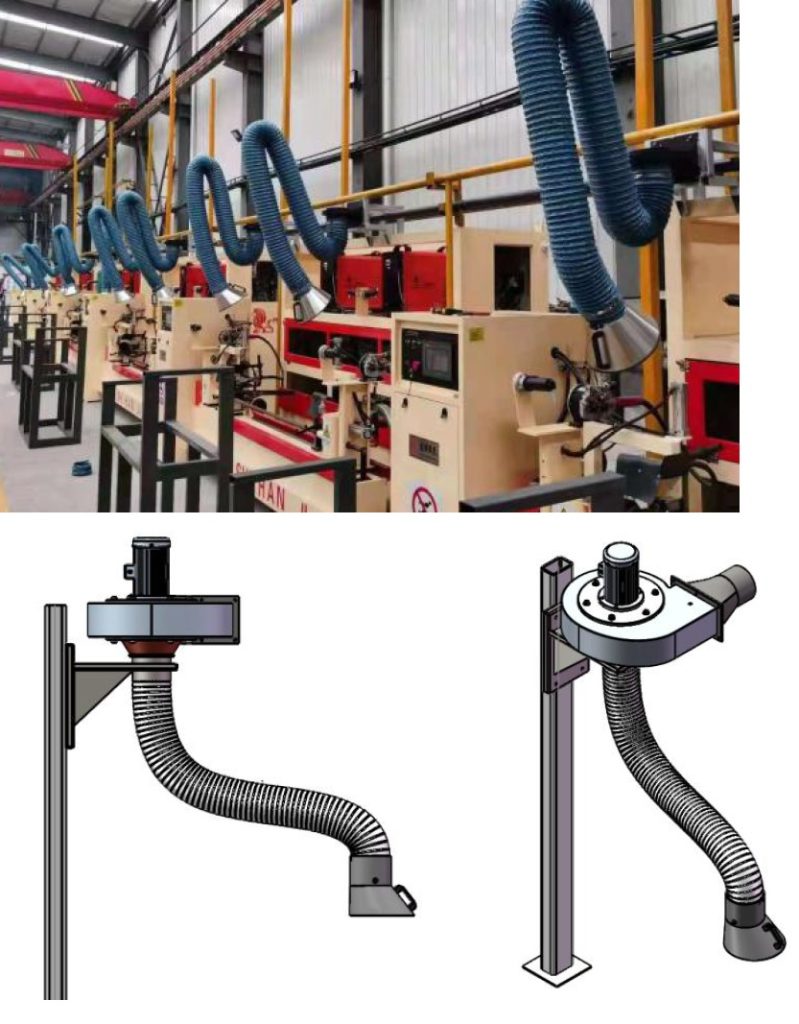

- This arm frame/support structure adopts the aluminum alloy material, of no rust, Corrosion resistant, acid and alkali salt, high temperature resistance, light weight, high intensity, labor-saving operation with power device, hovering freely,.5. Can be connected to welding smoke purifier equipment and dusting collection equipment, can be directly mounted on the wall or the duct system.
- optional accessories: a cover opening fire net; working lamp; light, smoke, temperature sensing probe

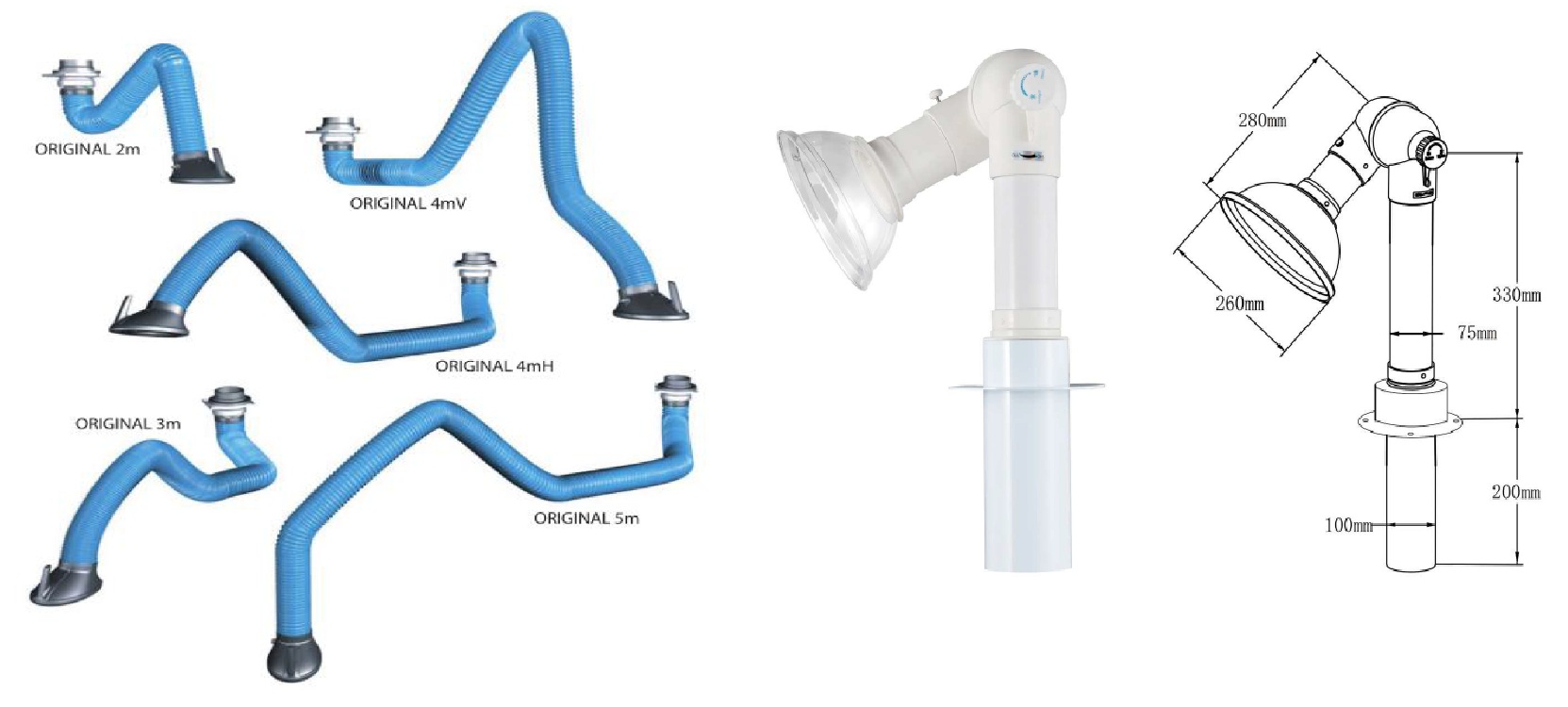

- Length: 2m-10m Diameter: φ150mm, φ160mm, φ200mm
- Import PVC steel wire air hose, anti-corrosion; endure acid, and high temperature 1400C Skeleton material: the spring steel is galvanized, and other metal components and fasteners are all stainless steel 304#.
- Suction cover: stainless steel, 360 degree arbitrary hover with wind control valve for suction mouth
- Light weight, high strength, with power device, easy to operate, hover freely. It can be adjusted in any direction, and its capture effect is good.
- Can work according to the scene of the need to configure the different suction hood, for example, large type, round type, square shape, hat shape, etc.
- Options: fire prevention network, work light, smoke/light/ temperature prob
